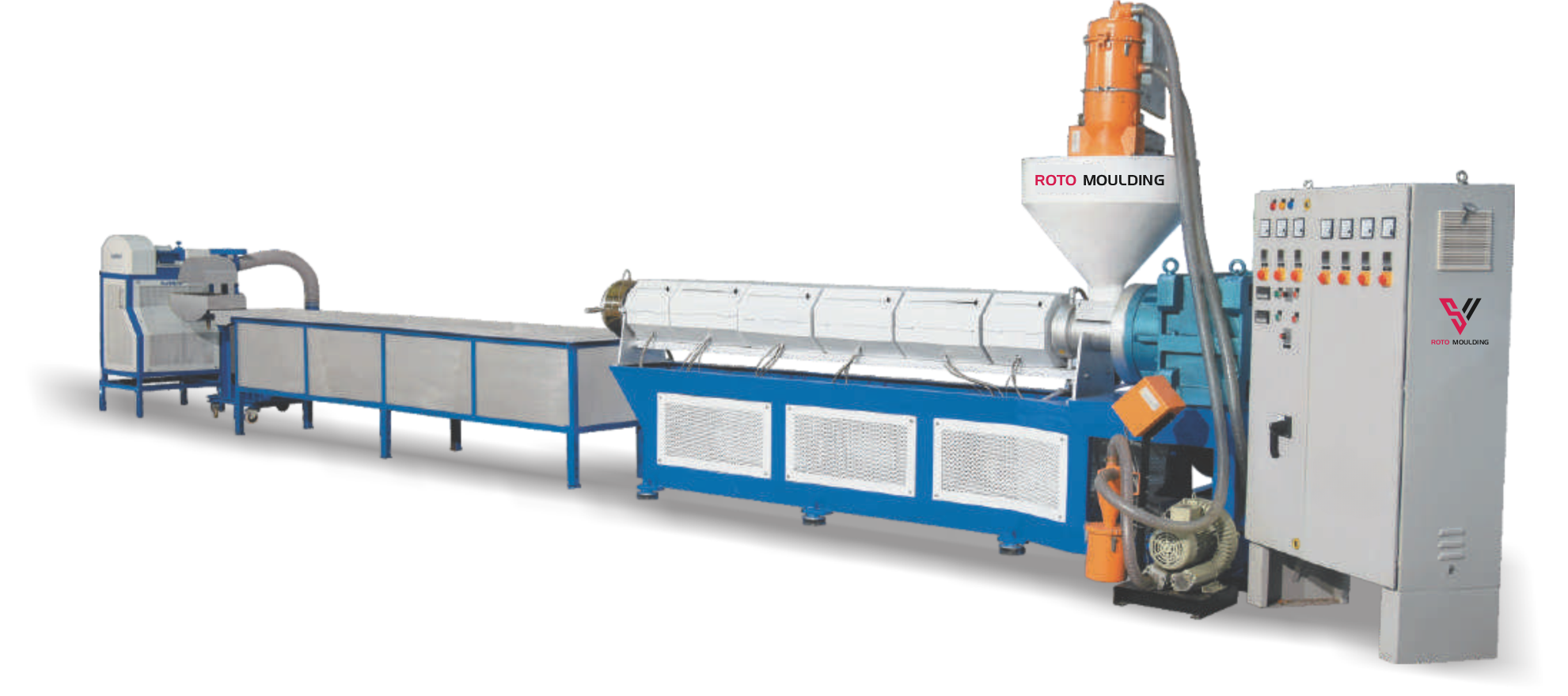

Seasonal Radius Extruder
- High-Efficiency LLDPE Pellet Production featuring advanced temperature control systems for uniform polymer melting and homogenization.
- Precision Pelletizing System with synchronized control to maintain optimal feed rates and consistent pellet sizing for superior plastic granules.
- Energy-Saving Extrusion Process utilizing digital temperature controllers and enclosed heating zones for faster heating and reduced power consumption.
- Moisture-Free Polymer Compounding with air knife technology for completely dry strands and efficient cooling of plastic pellets.
- Smart Control Operation featuring microprocessor-based control panel with digital displays for precise monitoring of the plastic pellet production line.
- Safety-Enhanced Design with fully enclosed heaters and cold start protection for secure LLDPE processing operations.
- Automated Cooling System incorporating stainless steel water cooling tank for consistent strand temperature before pelletizing.

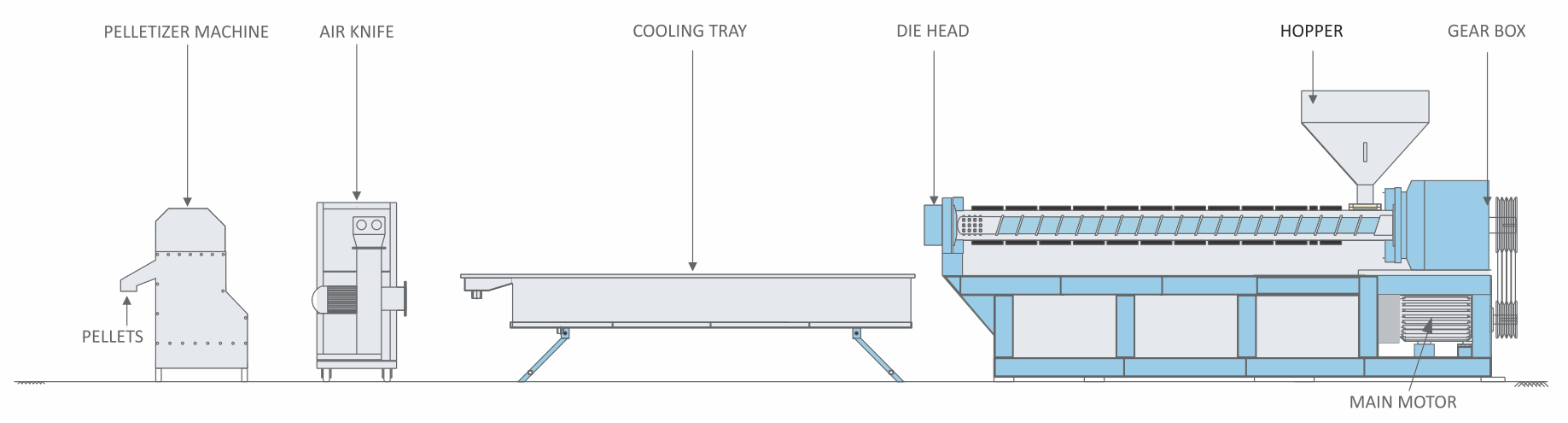

Machine Layout
Seasonal Radius Extruder Technical Specifications
| Model | Main Motor (kW) | Output in LLDPE (kgs/hr) | Floor Space Required (Mtr) |
|---|---|---|---|
| SVE -75 | 18.25 | 120 | 7.5 x 2.0 x 2.0 |
| SVE -90 | 22.25 | 150 | 9.0 x 3.0 x 2.2 |
| SVE -100 | 37.25 | 200 | 9.5 x 3.0 x 2.2 |
| SVE -110 | 45.00 | 250 | 9.5 x 3.0 x 2.2 |
Advanced Polymer Extrusion Solutions for Industrial Applications
Our SeasonalRadiusExtruder delivers precision processing of thermoplastics including LLDPE, LDPE, HDPE, RPVC, and engineering plastics. The system excels in polymer pelletizing, compounding, and recycling applications with its temperature-controlled extrusion, synchronized pelletizer feed, and moisture-free strand production. Ideal for manufacturers requiring consistent melt homogenization and energy-efficient plastic granulation.
