CHECK THE MODELS OF
BI AXIAL ROTOMOULDING MACHINE

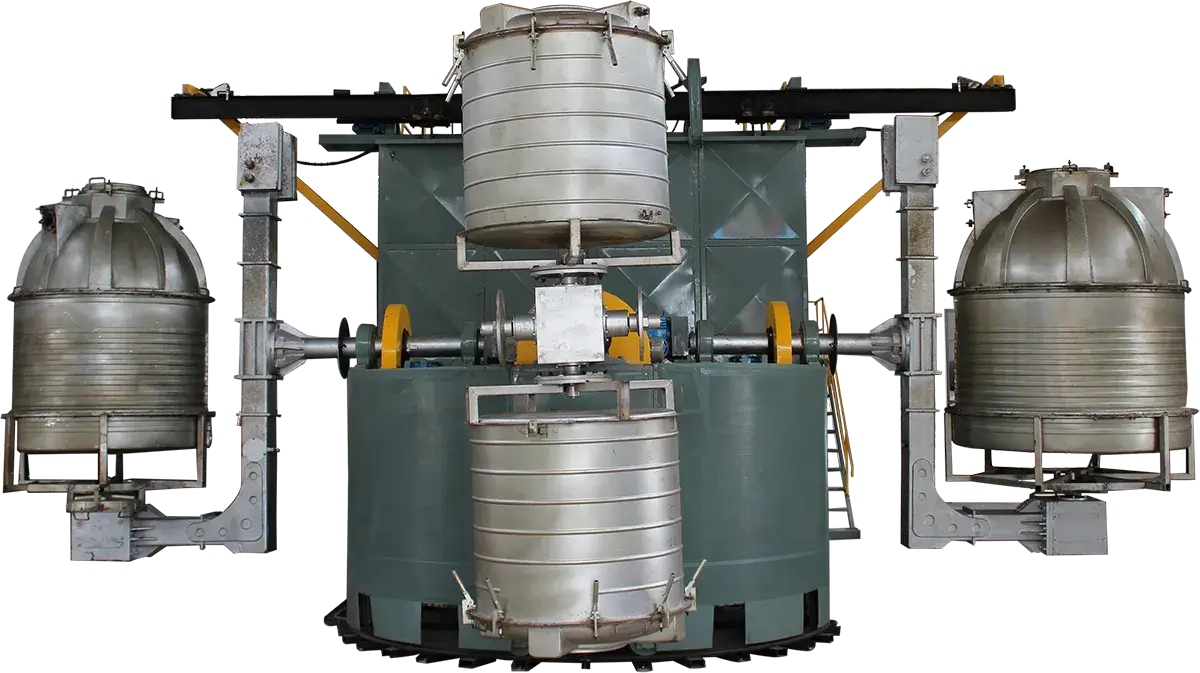

Four Arm Biaxial
- Advanced machine with cutting-edge technology for superior performance and efficiency.
- High production output with low fuel consumption, reducing operational costs.
- Energy-efficient oven design insulated with Cera wool material for optimal heat retention.
- Patented oven structure minimizes heat loss and reduces cycle time for faster processing.
- Interchangeable arms for versatile manufacturing adaptability.
- Pneumatic door sealing system ensures airtight closure to prevent heat leakage.
- High-efficiency dual-stage burner (compatible with LPG, CNG, and diesel) for reduced energy waste.
- Integrated safety features, including alarms and indicators, for secure industrial operations.
- Multi-layer/PE foam charging capability for expanded production flexibility.
- Intuitive control panel with smart interlocking for user-friendly operation.
- Optional hydraulic lift for effortless multi-layer material handling, boosting productivity.
- PLC automation upgrade available for fully automated industrial processes.
Machine Layout
Key Features & Flexibility
- ✔Tailored Solutions: Customize the machine to meet specific customer demands for optimized performance.
- ✔Straight Arm Option: Mount 2 or 4 moulds simultaneously, reducing production costs for small tanks.
- ✔Offset Arm Option: Ideal for large-volume tanks, supporting a single heavy-duty .
Machine Range & Capacity
- ✔Fixed Turret / Moving Oven Rotomolding Machines
- ✔Oven Chamber Sizes: 1.5m to 6.0m (scalable for industrial needs)
- ✔Production Capacity: Up to 20,000 LTR (5000 US Gallons / 4150 Imperial Gallons)
Technical Specifications
| Model | Oven Chamber Size (mtr) | Fuel | Swing Dia Straight Arm (mm) | Swing Dia Offset Arm (mm) | Elect Load (Hp) | Floor Space (LxWxH mtr) |
|---|---|---|---|---|---|---|
| AEBI-3000 | 3.2 x 2.5 x 3.2 | Diesel / Gas | 2900/475/2100 | 1750/400/1600 | 24 | 12x10x4 |
| AEBI-5000 | 3.4x2.7x3.4 | Diesel / Gas | 3200/475/2200 | 1900/400/1700 | 28 | 14x10x4.5 |
| AEBI-7500 | 3.6x2.8x3.6 | Diesel / Gas | 3400/475/2700 | 2000/400/2100 | 41.50 | 15x14x5 |
| AEBI-10000 | 4.1x3.6x4.1 | Diesel / Gas | 3800/475/3200 | 2200/400/2600 | 49 | 17x14x5 |
| AEBI-15000 | 4.7x4x4.7 | Diesel / Gas | 4400/475/3700 | 2900/400/2900 | 69 | 18x16x6 |
| AEBI-20000 | 5.2x4.1x5.2 | Diesel / Gas | 4800/475/3850 | 3600/400/3200 | 83 | 20x16x6 |
| AEBI-20000+ | 6x4.1x6 | Diesel / Gas | 5800/560/3900 | 4100/410/3200 | 95 | 26x18x6.5 |

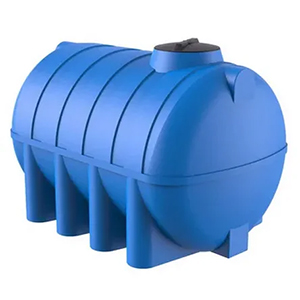

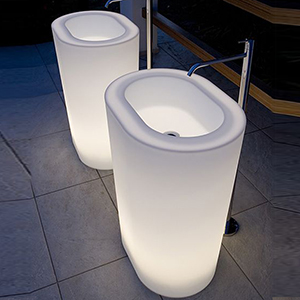

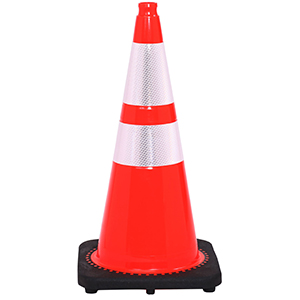

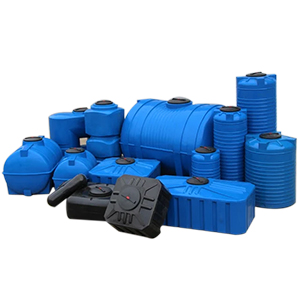

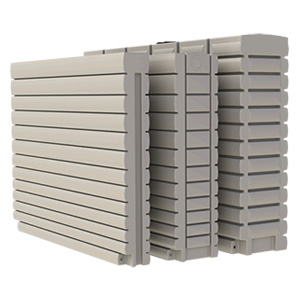

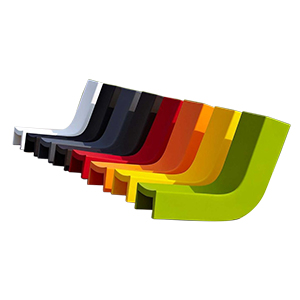

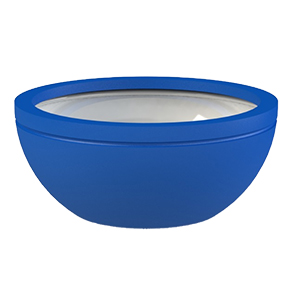

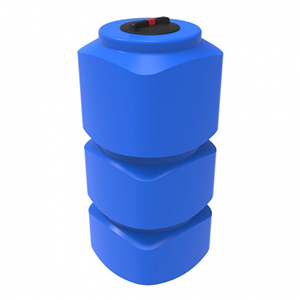

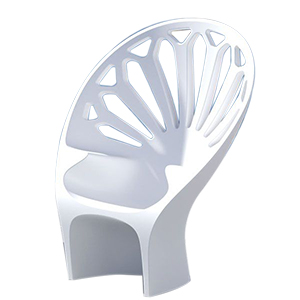

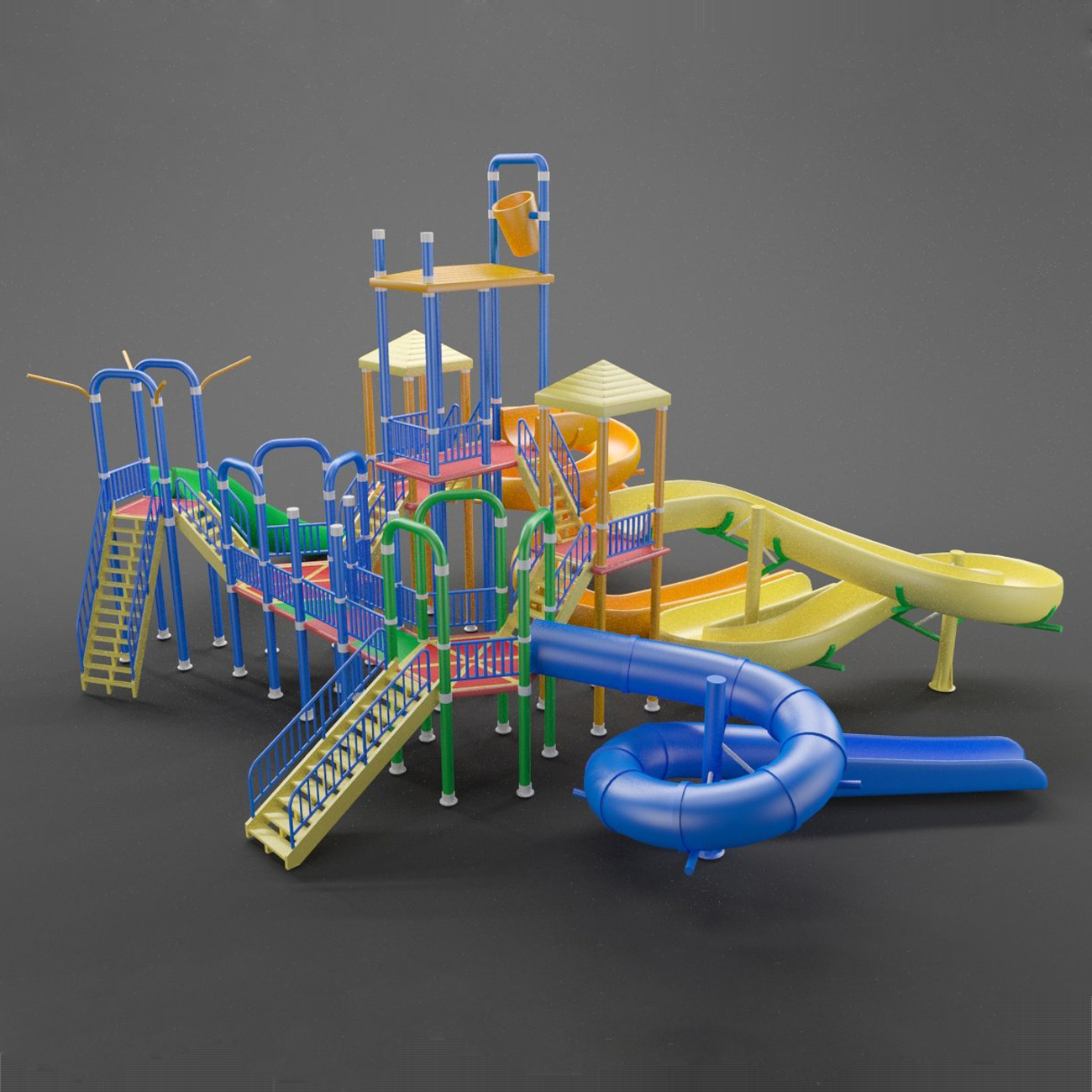

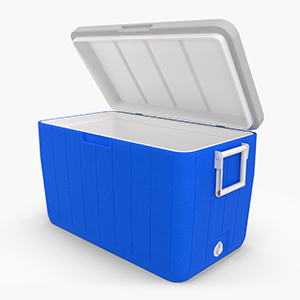

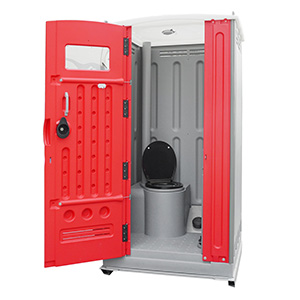

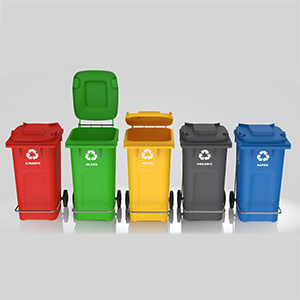

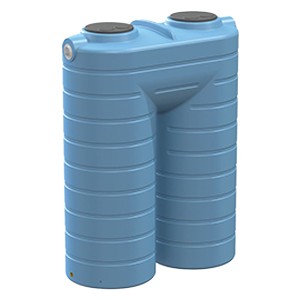

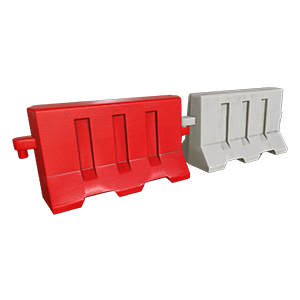

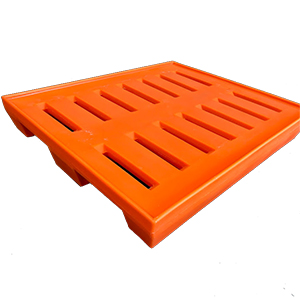

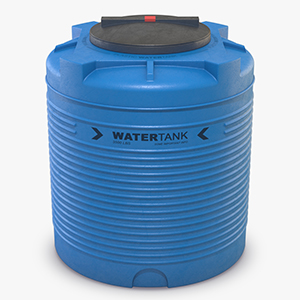

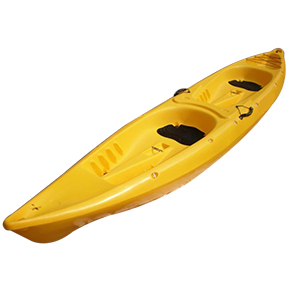

Bi-Axial Rotomolding Machine Applications
